Specifications
- Specifications/Standards: Measurement data output terminal included
- Measuring surface has a carbide alloy tip
- Measuring range (mm): 0-25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±2
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 331-261-30
- Measuring surface shape: Spline type
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery (SR44) x 1 (included)
- Tip Diameter (mm): 2
- b: 32.5
- c: 17.5
- L: 0
- Position detection method: Electromagnetic induction rotary encoder
- Parallelism (μm): 2
- Flatness (μm): 0.3
- Minimum display unit (mm): 0.001
- Measuring surface dimensions (mm): φ2 × 5

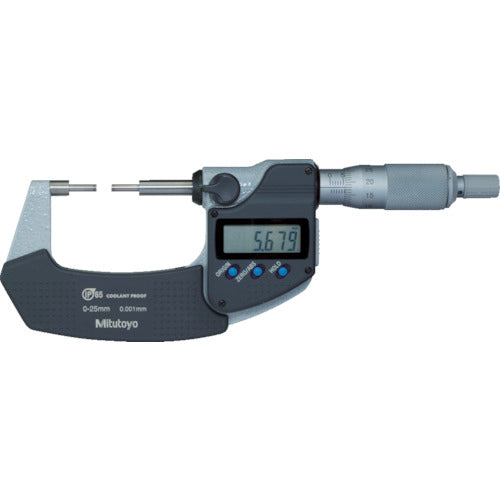

- Model number: SPM2-25MX
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 350g
- Set contents/Accessories: Spanner (No. 301336) 1 piece
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
