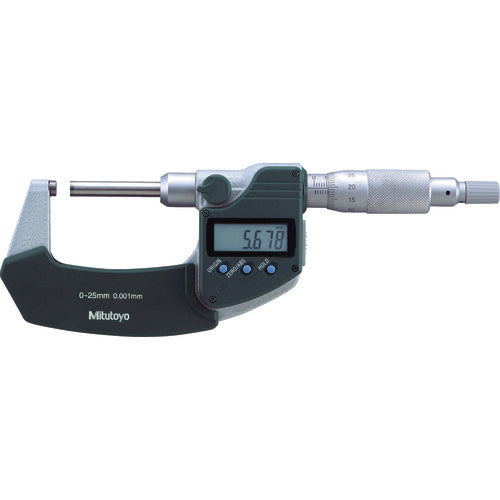

Specifications
- Specifications/Standards: Feed mechanism: Spindle linear type
- Measurement data output terminal available
- Measuring surface with carbide alloy tip
- Spindle diameter φ6.35 mm
- Measurement range (mm): 0 to 25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±3
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 406-250-30
- Measuring surface shape: Standard type (with carbide alloy tip)
- Constant pressure device: Ratchet thimble
- Electric Power Source (V): Button-type silver oxide battery (SR44) x 1 (included)
- a: 7
- b: 32
- c: 2.8
- L: 0
- Position Detection Method: Electromagnetic induction rotary encoder
- Parallelism (μm): 3
- Flatness (μm): 0.3
- Minimum Display Unit (mm): 0.001
- Model Number: OMV-25MX
- Battery Life: Approximately 2.4 years under normal use
- Weight/Unit of Mass: 360g
- Set Contents/Accessories: Spanner (No. 301336) x 1
- Country of Origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
