Specifications
- Specifications/Standards: Feed mechanism: Spindle linear type
- Measurement data output terminal available
- Measuring surface with carbide alloy tip
- Measurement range (mm): 0-30
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±2
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 293-666-20
- Measuring surface shape: Standard type (with carbide alloy tip)
- Constant pressure device: Ratchet thimble
- Power supply (V): Button-type silver oxide Silver battery (SR44) x 1 (included)
- a: 6.2
- b: 25
- c: 2
- L: 0
- Position detection method: Capacitive absolute encoder
- Parallelism (μm): 2
- Flatness (μm): 0.3
- Maximum response speed: Unlimited
- Minimum display unit (mm): 0.001
- Measuring force (N): 5~12

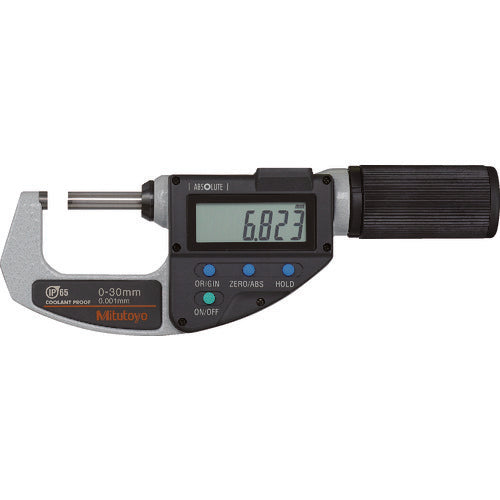

- Model number: MDQ-30MX
- Battery life: Approximately 5 years under normal use
- Weight/Weight unit: 275g
- Country of origin: Japan
