Specifications
- Specifications/Standards: No measurement data output terminal
- Measurement range (mm): 75-100
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±2
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 293-243-30
- Measuring surface shape: Standard type
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery (SR44) x 1 (included)
- a: 11.5
- b : 60
- c: 2.5
- L: 75
- Position detection method: Electromagnetic induction rotary encoder
- Parallelism (μm): 2
- Flatness (μm): 0.3
- Minimum display unit (mm): 0.001
- Measuring force (N): 5~10

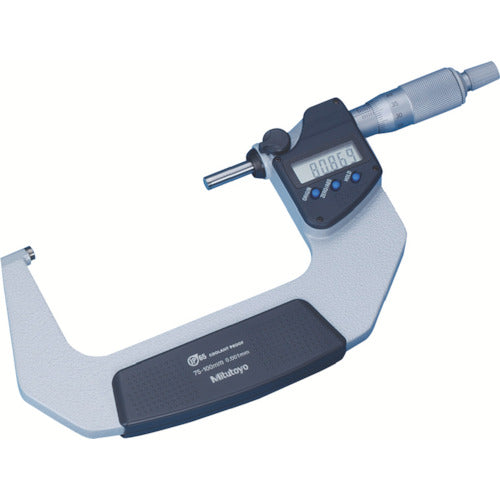

- Model number: MDC-100PX
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 625g
- Set contents/Accessories: 1 reference rod, 1 spanner (No.301336)
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
