Specifications
- Specifications/Standards: Measuring surface with carbide tip
- Constant pressure device included
- Measuring range (mm): 25-50
- Minimum display (mm): 0.01
- Maximum permissible error (μm): ±2

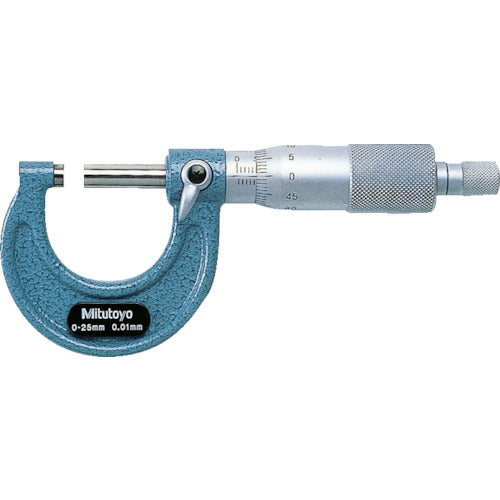

- Manufacturer code: 103-138
- Measuring surface shape: Standard flat type (with carbide tip)
- Constant pressure device: Ratchet stop
- Minimum display: 0.01mm
- b: 38
- c: 2.5
- L: 25
- Parallelism (μm): 2
- Flatness (μm) ): 0.6
- Measuring force (N): 5~10
- Graduation (mm): 0.01
- Symbol: M110-50
- Weight/Unit of mass: 0.215 kg
- Set contents/Accessories: 1 reference rod (excluding measuring range 0~25 mm), 1 spanner (No. 301336) (maximum measuring length 300 mm or less), 1 spanner (No. 200154) (maximum measuring length 325 mm or more)
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
