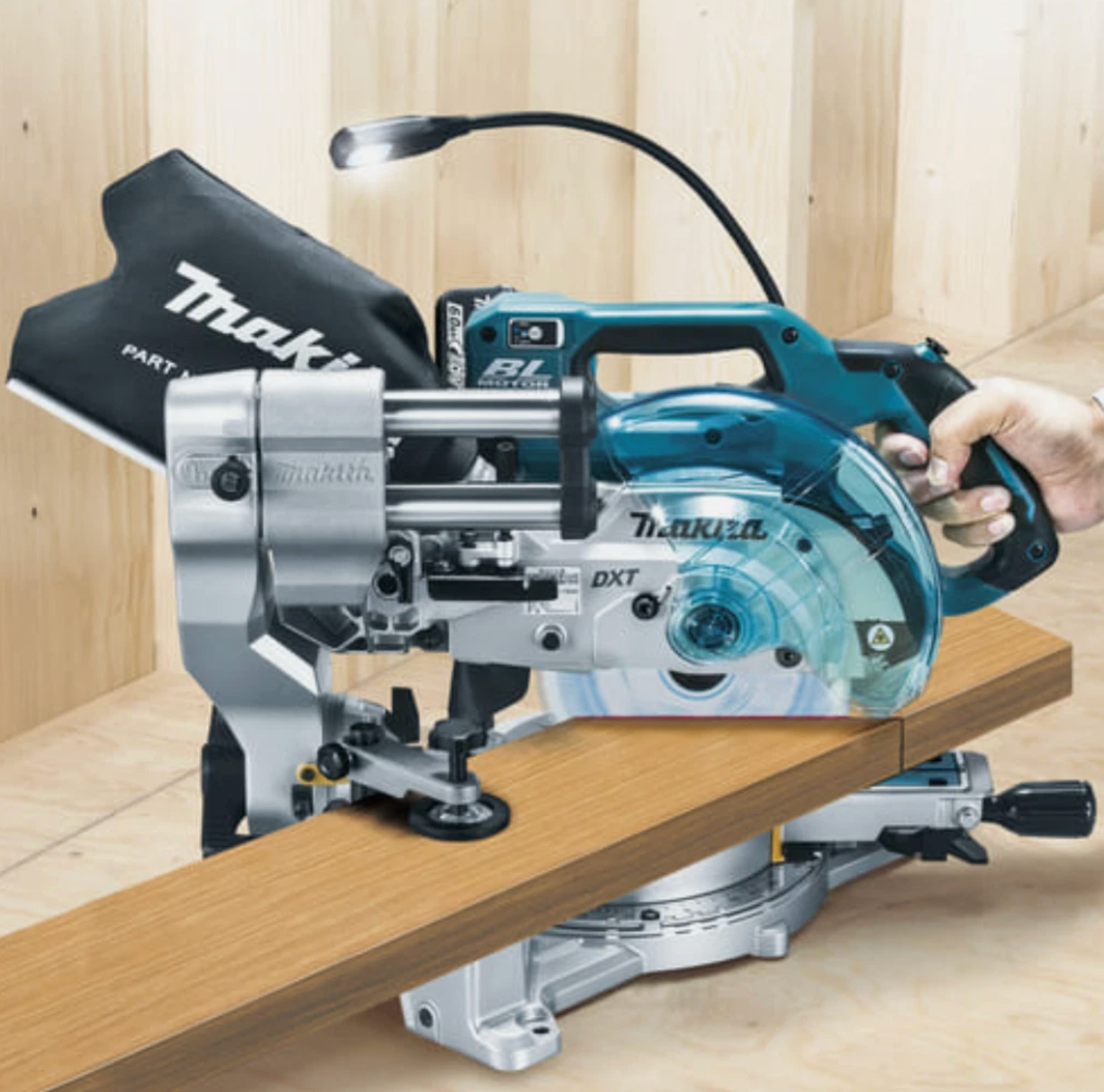

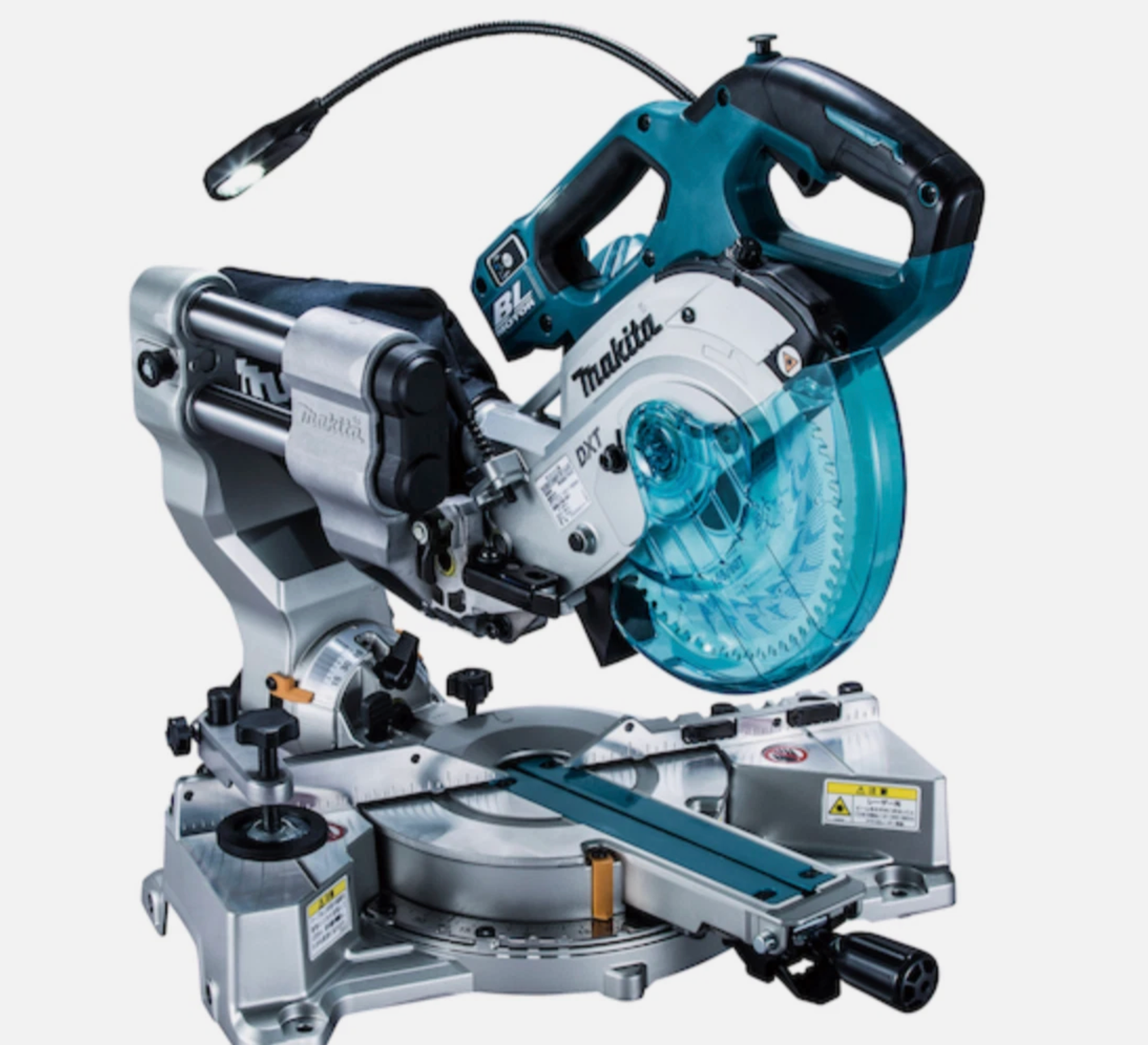

Makita LS610DZ 165mm Cordless Slide Compound Miter Saw – Tool Only

Blade Specifications

Blade diameter: 165 mm

Compatible blade diameter: 155–165 mm

Blade bore diameter: 20 mm

---

Cutting Capacity (Width × Height, mm)

Blade Tilt: Left 45°

Turn Base Angle: 0° (Straight Cut)

182 × 30 mm

150 × 36 mm (with 20 mm spacer)

Turn Base Angle: Left / Right 45°

127 × 30 mm

100 × 36 mm (with 15 mm spacer)

---

Blade Tilt: 0° (Straight)

Turn Base Angle: 0° (Straight Cut)

182 × 46 mm

150 × 55 mm (with 20 mm spacer)

Turn Base Angle: Left / Right 45°

127 × 46 mm

100 × 55 mm (with 15 mm spacer)

Turn Base Angle: Right 57°

98 × 46 mm

80 × 55 mm (with 10 mm spacer)

---

Blade Tilt: Right 45°

Turn Base Angle: 0° (Straight Cut)

182 × 15 mm

150 × 20 mm (with 20 mm spacer)

Turn Base Angle: Left / Right 45°

127 × 15 mm

100 × 20 mm (with 15 mm spacer)

---

Performance

No-load speed: 5,000 min⁻¹ (rpm)

Power supply: 18V DC

---

Estimated Work Amount per Full Charge

(Recommended battery usage)

Meranti wood (180 × 40 mm): approx. 250 cuts

Flooring material (180 × 12 mm): approx. 400 cuts

---

Dimensions (L × W × H)

495 × 400 × 470 mm

---

Weight

10.2 kg (including battery)

---

Standard Accessories Included

SAMEHADA Premium White Tipped Saw Blade (A-69244)

Dust bag

Triangular square

Vertical view

Hex wrenches (5mm / 2.5mm)

---

Key Features

High-power brushless motor ✔

LED work light ✔
