Specifications

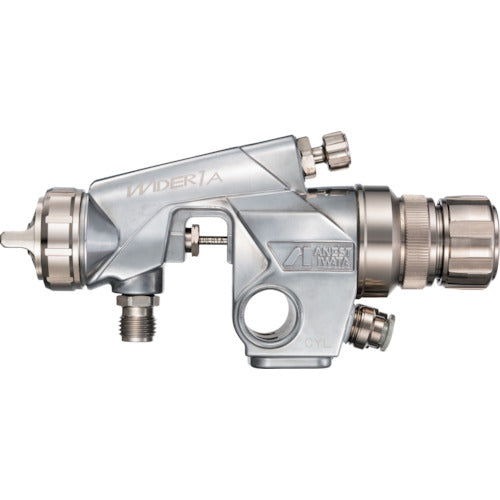

| ANEST IWATA WIDER1A-08E2P Automatic spray gun Small automatic gun |
| Specifications: Nozzle diameter (mm): 0.8 |
| Mounting port (air/liquid): Atomizing air Φ8, operating air Φ6, G1/4 male |
| Liquid discharge rate (ml/min): 150 |
| Spray pattern width (mm): 190 |
| Air consumption (L/min): 270 |
| Spray pattern: Round to flat spray |
| Depth (mm): 38.0 |
| Height (mm): 76.5 |
| Overall length (mm): 162.5 |
| Weight: 400g |
| Country of origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
