Specifications

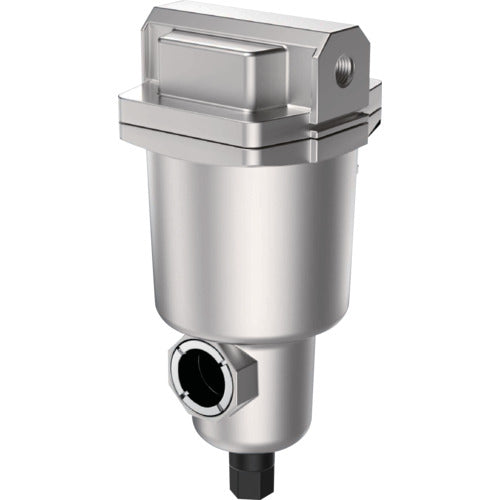

| ANEST IWATA AMF1200B-14D air filter Micro mist filter |
| Specifications/Standards: Anest Iwata Micro Mist Filter |
| Filtration Accuracy (μm): 0.01 |
| Operating Pressure (MPa): 1.4 |
| Processed Air Flow Rate (m³/min): 1200 (Flow rate at 0.7MPa) |
| Connection Port Size: Rc3/8 |
| Overall Length (mm): 225 |
| Flow Rate at 0.7MPa (Rc3/8B) (L/min): 1200 |
| Flow Rate at 1.0MPa (L/min): 1600 |
| Flow Rate at 1.4MPa (L/min): 2200 |
| Filtration Degree (μm): 0.01 |
| Operating Pressure (MPa): 1.4 |
| Operating Temperature Range (°C): -5 to 60 (No freezing) |
| Weight (kg): 0.9 |
| Weight/Unit: 0.9 kg |
| Country of Origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
