Specifications

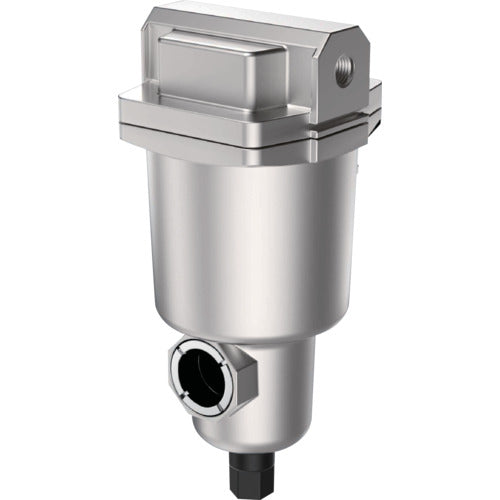

| ANEST IWATA ALF1300B-14D Dry filtration Main line filter |
| Specifications/Standards: Anest Iwata Main Line Filter |
| Filtration Accuracy (μm): 3 |
| Operating Pressure (MPa): 1.4 |
| Processed Air Flow Rate (m³/min): 1.3 |
| Connection Port Size: Rc3/8 (Rc1/2) |
| Operating Fluid: Air |
| Fluid Temperature (°C): 5-60 |
| Drain Discharge Method: Automatic |
| Depth (mm): 90 |
| Height (mm): 204 |
| Width (mm): 90 |
| Flow Rate at Connection Port Rc3/8B 0.7MPa (L/min): 1300 |
| Flow Rate at 1.0MPa (L/min): 1700 |
| Flow Rate at 1.4MPa (L/min): 2400 |
| Filtration Degree (μm): 3 |
| Operating Pressure (MPa): 1.4 |
| Operating Temperature Range (°C): -5 to 60 *No freezing |
| Weight (kg): 0.9 |
| Weight/Unit of Weight: 900g |
| Country of Origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
