Specifications

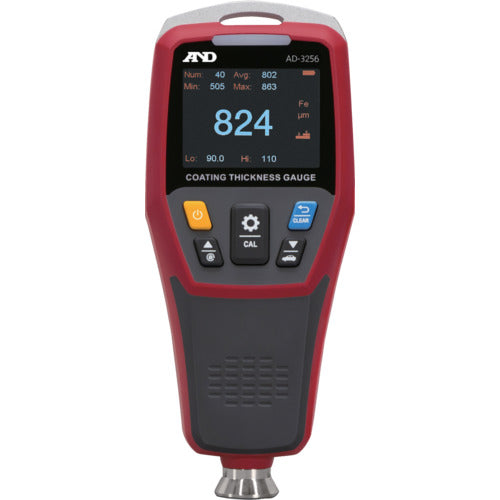

| A&D AD-3256 Dual-type film thickness gauge AD-3256 |
| Specifications/Standards: Output Specifications: USB (PC software) |
| Measurement Accuracy: ±(3% + 5) μm (0-99.9 μm), ±(3% + 1) μm (100-1250 μm) |
| Measurement Range (μm): 0-1250 |
| Resolution (μm): 0.1 (0.0-99.9 μm) / 1 (100-1250 μm) |
| Memory Function: 500 measurement data entries |
| Measurement Method: Electromagnetic/Eddy Current |
| Power Supply (V): 2 x AA batteries (included) |
| Auto Power Off: Approx. 5 minutes |
| Dimensions (mm): 65 (W) x 152 (H) x 41 (D) |
| Weight (g): Approx. 180 (including batteries) |
| Power Supply: 2 x AA batteries (included) |
| Material: Body: ABS, Thermoplastic Rubber |
| Screen: PC |
| Buttons: Silicone |
| Sensor: Copper Alloy |
| Weight/Unit of Mass: 130g |
| Operating Conditions: 0-40°C, 80% RH or less (non-condensing) |
| Set Contents/Accessories: Battery (for monitoring) |
| Sensor Cap |
| Carrying Case |
| Strap |
| Micro USB Cable |
| Zero Adjustment Plates (2 pieces: for ferrous substrates, for non-ferrous substrates) |
| Adjustment Test Pieces (50μm, 100μm, 250μm, 500μm, 1000μm (nominal value)) |
| Quick Instruction Manual |
| Country of Origin: China |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
