Specifications
- Specifications/Standards: Measurement data output terminal included
- Protection class: IP65
- Measuring surface has a carbide tip
- Measurement range (mm): 0-25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±4
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 389-271-30
- Frame length (mm): 150
- Measuring surface shape: Standard type flat (with carbide tip)
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide Silver battery (SR44) x 1 (included)
- a: 43
- b: 160
- c: 2.5
- L: 0
- Position detection method: Electromagnetic induction rotary encoder
- Parallelism (μm): 3
- Flatness (μm): 0.6
- Minimum display unit (mm): 0.001
- Frame depth (mm): 150

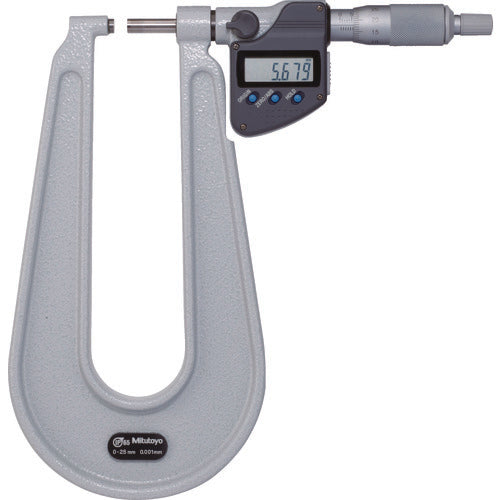

- Model number: PMUD150-25MX
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 840g
- Set contents/Accessories: Spanner (No. 301336) x 1
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
