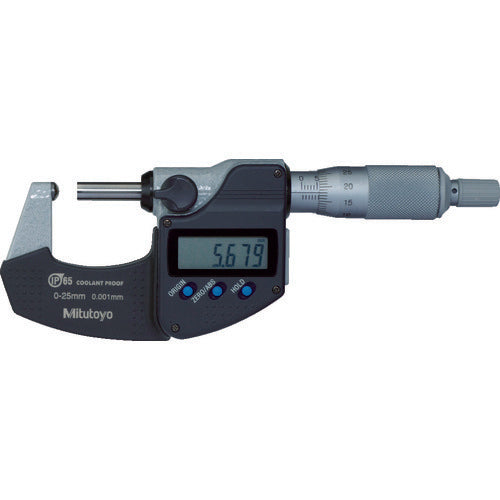

Specifications
- Specifications/Standards: Measurement data output terminal included
- BMS-MX has an IP65 protection rating.
- Measurement range (mm): 0 to 25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±2
- Protection rating: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 395-251-30
- Measuring surface shape: Single-sided spherical type (with carbide alloy tip)
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery (SR 44) x 1 (included)
- Minimum measurable inner diameter (mm): 15
- Position detection method: Electromagnetic induction rotary encoder
- Spindle flatness (μm): 0.3
- Minimum display unit (mm): 0.001
- Model number: BMS-25MX
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 270g
- Set contents/Accessories: 1 reference rod (excluding measurement range 0-25mm), 1 spanner (No.301336)
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
